Core Concepts

Six ideas that explain how Photon works. Each builds on the previous one.

---

1. Methods Are Tools

Every public method on your class becomes a tool — callable from the CLI, the web UI, and AI agents.

export default class Calculator {
  add(params: { a: number; b: number }) {
    return params.a + params.b;
  }
}

• CLI: photon cli calculator add --a 2 --b 3 → 5
• Beam: A form with two number fields and an "Execute" button
• MCP: A tool named calculator_add with a JSON schema derived from the type

The method signature is the API. Parameters become inputs. The return value becomes the output. Nothing to register, no routes to define.

---

2. Comments Drive Everything

JSDoc comments aren't decorative — they're the primary configuration language. Photon reads them to generate descriptions, validation, UI hints, and behavior.

Without comments:

export default class Weather {
  forecast(params: { city: string }) {
    return this._getForecast(params.city);
  }
}

The AI sees a tool called forecast with a city parameter. That's all it knows.

With comments:

export default class Weather {
  /**
   * Get the 5-day weather forecast for a city
   * @param city City name {@example London} {@pattern ^[a-zA-Z\s]+$}
   * @format table
   * @cached 30m
   */
  forecast(params: { city: string }) {
    return this._getForecast(params.city);
  }
}

Now:

• The AI knows when to call this tool (weather questions) and what to pass
• Beam shows "London" as a placeholder and validates the pattern before submission
• Results render as a table instead of raw JSON
• Responses are cached for 30 minutes across all surfaces

One comment block configures three interfaces. See the Tag Reference for every available tag.

---

3. Formats Control Presentation

The @format tag tells Photon how to render return values. Without it, data renders as JSON. With it, the same data becomes a table, chart, diagram, or dashboard.

/** @format table */
list() { return this.items; }

/** @format chart:bar */
stats() { return this.salesData; }

/** @format metric */
revenue() { return { value: 142830, label: "Revenue", delta: "+12%" }; }

/** @format ring */
progress() { return { value: 73, max: 100, label: "Upload" }; }

Photon includes 30+ format types. Some are auto-detected from your data shape — time series become line charts, two-field arrays become pie charts. You can override with an explicit tag.

Formats work on every surface:

• Beam renders rich HTML (interactive charts, sortable tables, SVG gauges)
• CLI renders ASCII tables, colored text, compact summaries
• MCP returns structured data with format hints for the client

See the full gallery: Output Formats

---

4. State Is Automatic

Add @stateful to your class and non-primitive properties are persisted to disk, restored on startup, and emit events on every change.

/**
 * @stateful
 */
export default class Counter {
  private count = 0;

  increment() {
    this.count++;
    return { count: this.count };
  }
}

After calling increment three times, count is 3. Restart the server — it's still 3.

What @stateful gives you:

• Disk persistence — properties saved after every method call
• Event emission — every method broadcasts { method, params, result } to subscribers
• Object metadata — returned objects get __meta with createdAt, modifiedAt timestamps
• Real-time sync — Beam auto-updates when data changes, no polling

No database setup. No serialization code. Just a tag.

---

5. Settings Are Declared, Not Hard-Coded

If your photon has a knob the user should be able to change, declare it on protected settings. Photon generates a settings MCP tool from the property and persists user changes to disk.

export default class Poller extends Photon {
  /** User-tunable knobs */
  protected settings = {
    /** Polling interval in seconds */
    intervalSec: 60,
    /** Endpoint to poll */
    endpoint: 'https://api.example.com/status',
  };

  async tick() {
    const url = this.settings.endpoint; // readable and writable from inside the photon
    return await fetch(url);
  }
}

The settings tool surfaces in Beam, the CLI (photon cli poller settings), and any MCP client. JSDoc on each property becomes the tool's parameter description. Values persist to ~/.photon/state/<photon>/<instance>-settings.json and survive restarts.

Reach for settings first whenever a value should be runtime-configurable. Use a constructor parameter only for primitive secrets that should live in .env (API keys, tokens) and are not meant to be changed through the UI.

---

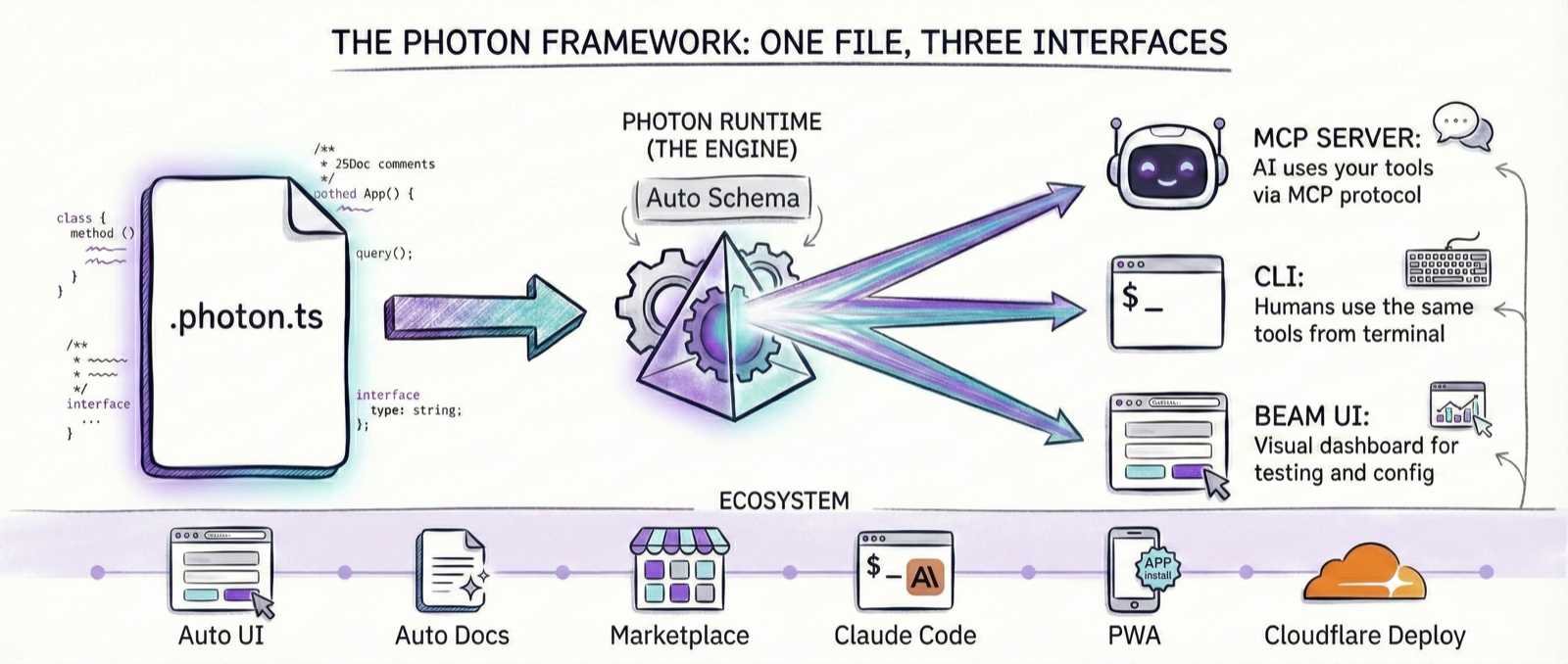

6. One File, Three Surfaces

This is the core insight. You write intent once — what the tool does, what inputs it accepts, how results look, what rules apply — and Photon derives three interfaces from that single source of truth.

todo.photon.ts
  ├── CLI        photon cli todo add --task "..."
  ├── Web UI     photon  →  localhost:3008
  └── MCP        photon mcp todo  →  Claude, Cursor, etc.

The three surfaces share:

• Same validation — type constraints and @param rules enforced everywhere
• Same logic — one method implementation, not three
• Same data — @stateful state is shared across all access paths
• Same formatting — @format table renders appropriately on each surface
• Same intent — method names, comments, schemas, annotations, and formats become _meta["photon/render"].intent so every surface can choose native controls without server-side UI code

When you add a @cached 5m tag, all three surfaces cache. When you add @throttled 10/min, all three enforce the rate limit. The annotations are surface-agnostic.

Intent is inferred, not declared through a new tag. List tasks plus @format table becomes a direct table view. Create task with a required title becomes a form/dialog. Delete task plus @destructive becomes a confirmed action. See Intent Metadata for the stable contract used by Beam, CLI, MCP clients, and desktop surfaces.

---

7. Where Photon Stores Your Data

Every photon has a home directory — the folder where its state, memory, logs, and compiled cache live. Photon picks this directory using one simple rule:

Where you run photon	Home directory
Inside a marketplace (any folder containing .photon.ts files)	That folder
Anywhere else	~/.photon (global default)

A marketplace is just a directory with one or more .photon.ts files at any depth. No config file needed. The presence of source files is the signal.

~/Projects/myapp/          ← marketplace (contains .photon.ts files)
  tasks.photon.ts
  .data/
    tasks/                 ← state, memory, logs for tasks.photon.ts
      state/
      memory/

~/.photon/                 ← global default (used anywhere else)
  features.photon.ts
  .data/
    features/

All data for a photon — state, memory, logs, schedules, compile cache — lands under {home}/.data/{photon-name}/. The source layout mirrors the data layout exactly.

You can override the home directory for any process by setting PHOTON_DIR:

PHOTON_DIR=~/Projects/myapp photon beam

This lets you run Beam or the CLI against a specific marketplace from any working directory.

The daemon is the only global piece. Everything else — state, memory, schedules, cache — belongs to whichever marketplace or global home owns the photon file. The daemon serves all marketplaces from a single process.

---

Next Steps

Ready to...	Go to
See all format types	Output Formats
Build something real	Getting Started
Declare user-configurable knobs	Settings
Coordinate related photons	Marketplace Configuration
Learn every tag	Tag Reference
Build custom HTML views	Custom UI
Read the full reference	Developer Guide
